EZRGEX3-M3-72
WERK-BRAU Universal Stick Mounted thumb for excavators 68,000 - 105,000 lbs. (35 & 40MT)
$12,393.00 - $14,133.00
1/24

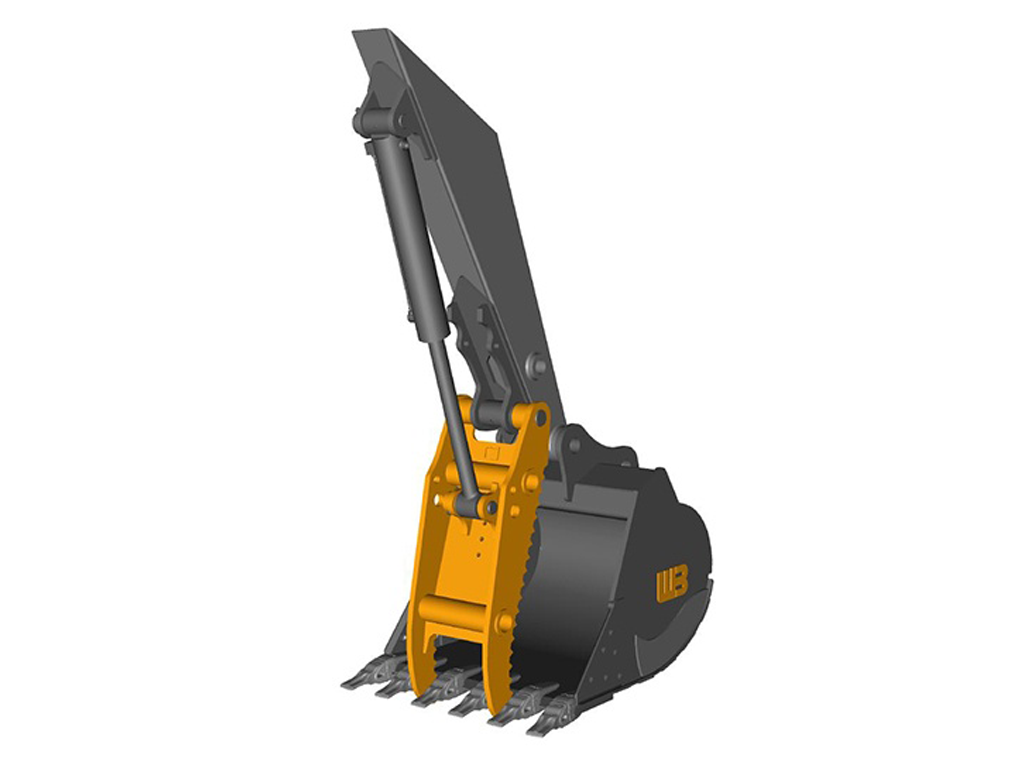

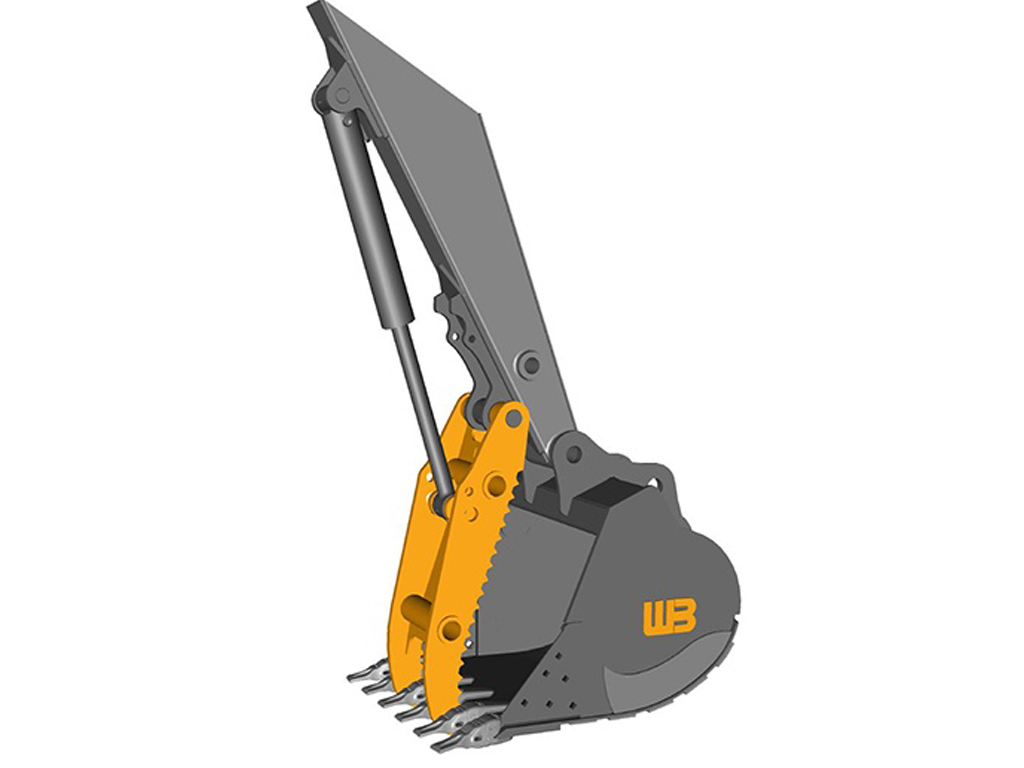

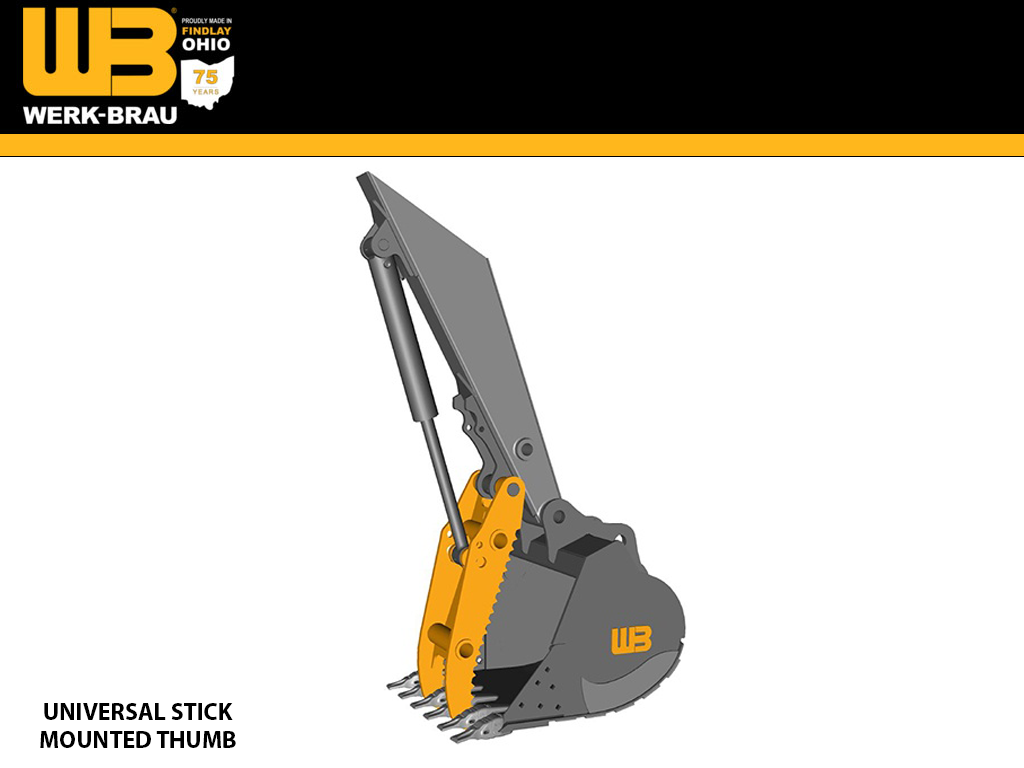

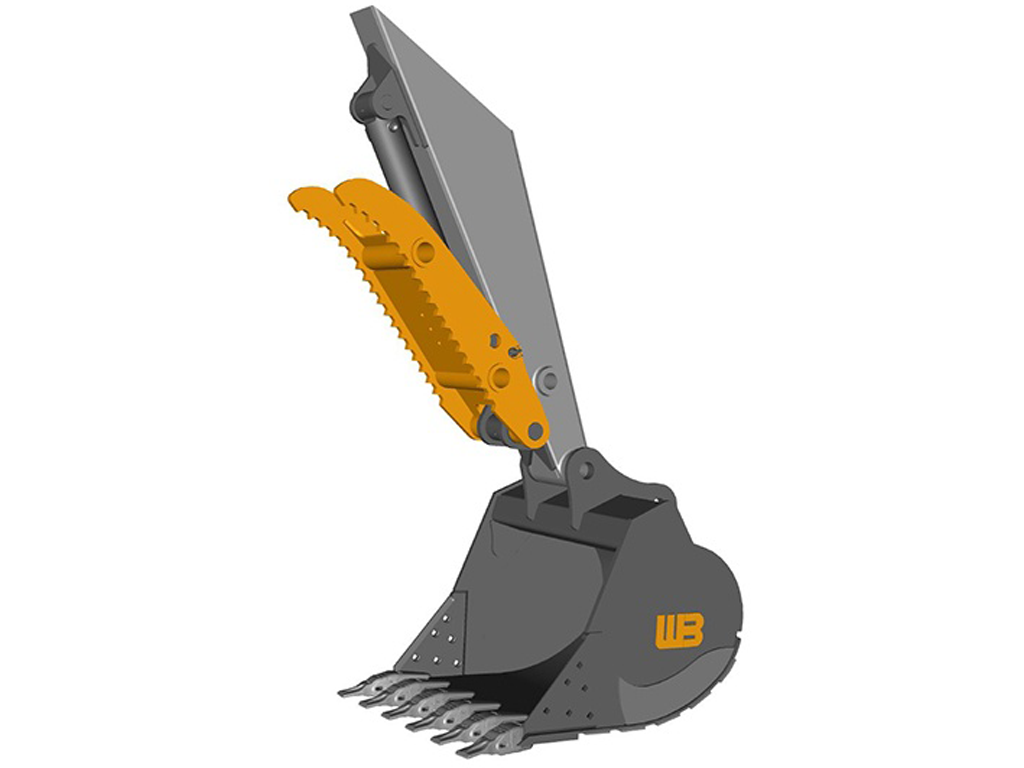

UNIVERSAL STICK MOUNTED THUMBS
Recommended Applications

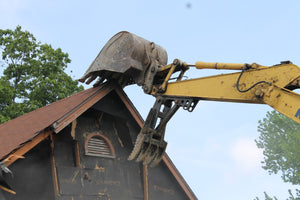

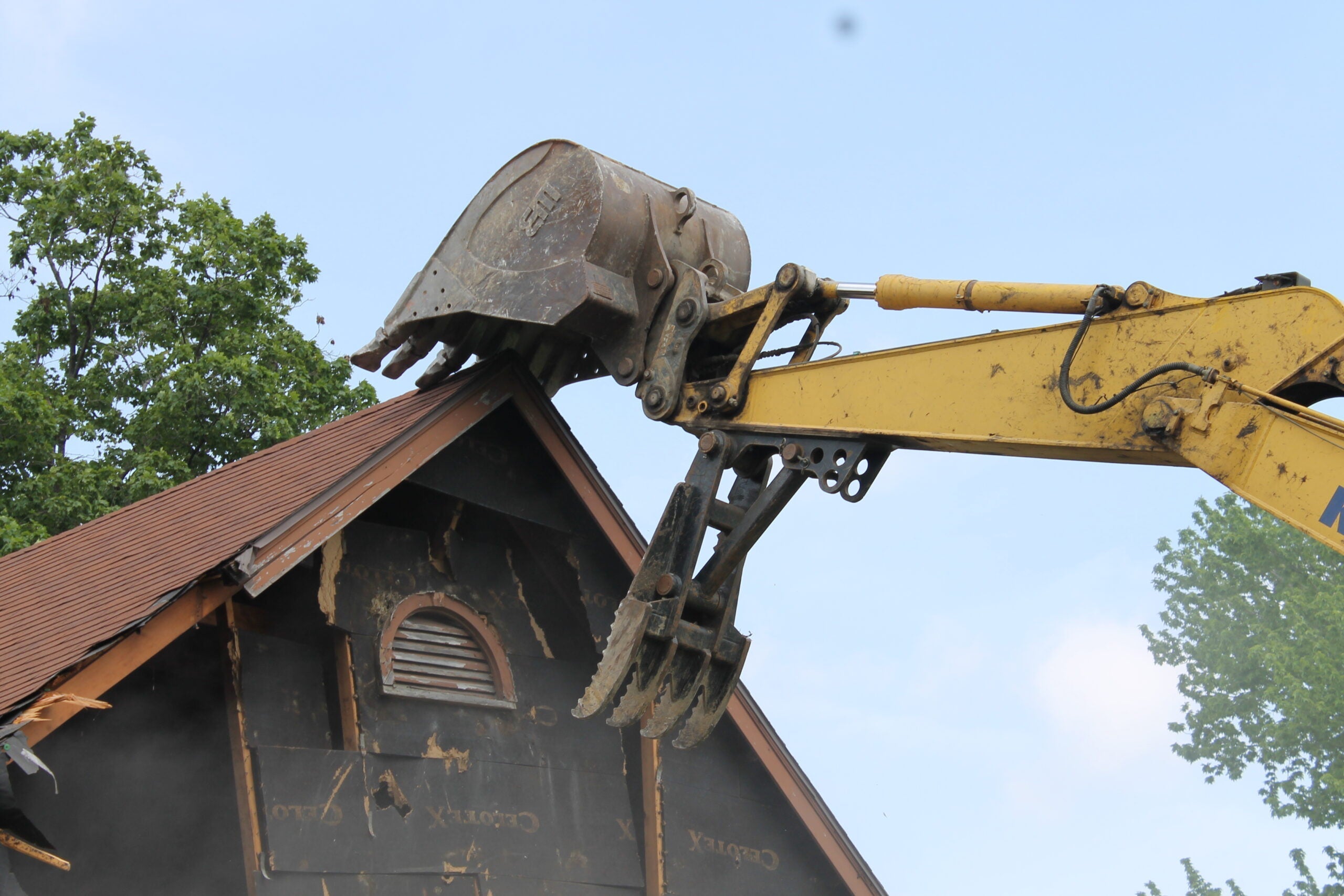

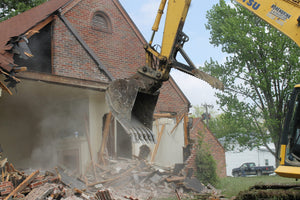

Specifically designed to aid in handling or loading irregular shaped objects, debris, rocks, or anything that cannot be handled with a bucket alone. This standard thumb design features 120 degrees of rotation, choose from 3 or 4 tine options.
Universal Fitting
Stick mounted thumbs are a universal style; slight modification(s) may be required (sold as is).
Quality Construction
T-1 steel is used in all critical and high wear components. The stick mounted thumb features hardened pins and bushings used at all pivot points.
Standard Sizes
Various models available to match machines capacities.
Features
- 120 degree standard rotation
- Standard designs for quick delivery
- Easy installation
- does not include jumper hose kit
- not recommended for machines with couplers or high cap bucket
| PART # | DESCRIPTION | #OF TINES | TINE SPACING | TIP RADIUS | WEIGHT |
| EZRGEX3-M3-72 | Rigid | 2 | 24" | 72" |
1,600 |
| EZRGEX3-M3-72H | Hydraulic | 2 | 24" | 72" |
1,650 |
| EZRGEX3-M3-84 | Rigid | 2 | 24" | 84" |
1,700 |
| EZRGEX3-M3-84H | Hydraulic | 2 | 24" | 84" |
1,750 |
35MT
40MT
| MAKE / WEIGHT CLASS | 35MT (68,500 - 82,000 LBS.) |
| CASE | CX350 |
| CAT | 330, 335, 336F DB-LINKAGE |
| DOOSAN | DX350LC-5, DX420LC-5 |
| HITACHI | ZX350, ZX380 |
| HYUNDAI | HX330, HX350, HX380 |
| JOHN DEERE | 350G, 380G, 350P |
| KOBELCO | SK350 |
| KOMATSU | PC300, PC350, PC360, PC390 |
| LIEBHERR | R 934 CL, R 924 C, R936 |
| LINK BELT | 350X4 |
| SANY | SY365 |
| TAKEUCHI | |
| VOLVO | EC330, EC340, EC350, EC360, EC380 |
40MT
| MAKE / WEIGHT CLASS | 40MT (82,500 - 105,000 LBS.) |
| CASE | CX470, CX490 |
| CAT | 349F |
| DOOSAN | DX480, DX490LC-5 |
| HITACHI | ZX450, ZX470, ZX490 |
| HYUNDAI | HX480 |
| JOHN DEERE | 470G, 470P |
| KOBELCO | SK480, SK485, SK500 |
| KOMATSU | PC400, PC450, PC490 |
| LIEBHERR | R 944 |
| LINK BELT | 460, 470, 490X4 |
| SANY | SY500 |
| TAKEUCHI | |
| VOLVO | EC460, EC480 |
