WCBH18-2

WERK-BRAU Wheel Compactors for 11,100 - 24,000 lbs. (mini 3, 4 & 5)

Size

2/24

Wheel Compactor

Recommended Applications

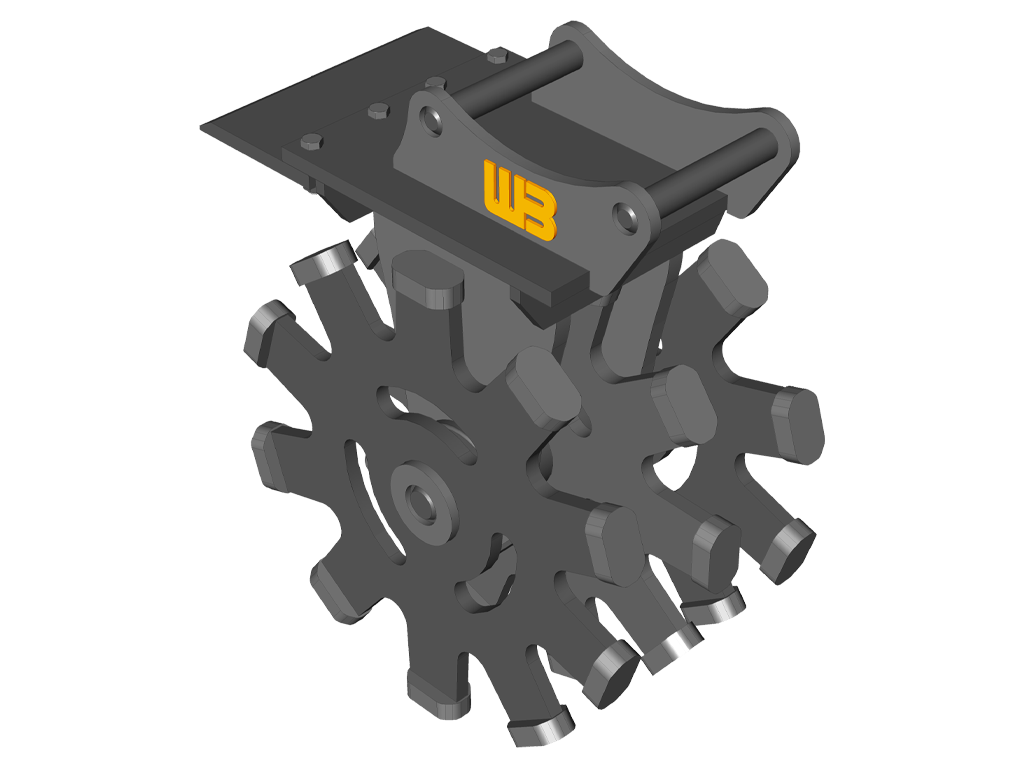

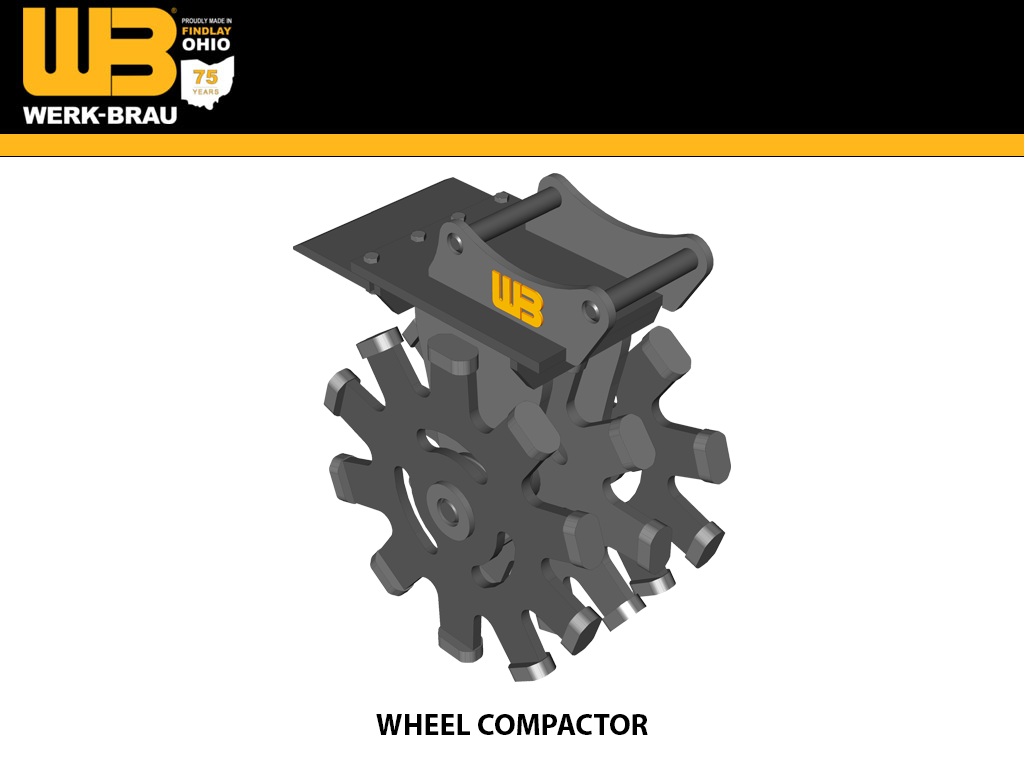

Werk-Brau's Wheel Compactor for Excavators is specifically designed to compact fill material in a trench as it is being back-filled. Each wheel compactor is designed with staggered pads for even compacting. Werk-Brau's Wheel Compactor also eliminates unsafe compacting in trenches.

Quality Construction

High strength steel is used throughout the assembly. Replaceable heavy duty, durable sealed bearings ensure a long operating life in tough conditions. Each wheel is replaceable.

Standard Sizes

Various models are available, each having numerous widths for most excavators.

Additional Features

Hardened bushings are standard in the pivots. Cleaner bars are incorporated into the design to prevent buildup between the wheels. Easily adaptable to quick-coupling attachments.

Additional Options

Different widths are optional. Additional wheels can be added. Special designs and options are available, please request a quote from your local dealer.


PART NUMBER  WIDTH # OF WHEELS WHEEL DIAMETER WEIGHT
WCBH18-2 18" 3 28" 1000
WCBH24-2 24" 3 28" 1100

MINI 3

MAKE / WEIGHT CLASS MINI 3 (11,000 - 14,000 LBS.)
BOBCAT E80, E85
CASE
CAT 306CR
DOOSAN DX80
DITCH WITCH
GEHL GE753Z, GE803
HITACHI
HYUNDAI R75
IHI 55N-2, 55NX, 65NX, 80NX
JCB 8060
JOHN DEERE
KOBELCO
KOMATSU PC78, PC95, PC88MR-8
KUBOTA
LINK BELT
MUSTANG 8003, 7503ZT
NEW HOLLAND
SANY
TAKEUCHI HR32
VOLVO
YANMAR
WACKER NEUSON ET90, EW100, 8003

MINI 4



MAKE / WEIGHT CLASS MINI 4 (14,000 - 16,000 LBS.)
BOBCAT
CASE CX75, CX80
CAT 307.5, 308CR, 308CRVAB, 309CR, 309CRVAB
DOOSAN DX85SR-3
DITCH WITCH
GEHL
HITACHI ZX75, ZX80
HYUNDAI R80
IHI
JCB 8080
JOHN DEERE 75G, 85G
KOBELCO 70SR, 75SR, 80CS, SK85
KOMATSU
KUBOTA KX080
LINK BELT 75, 80
MUSTANG
NEW HOLLAND E70, E80
SANY SY75, SY80
TAKEUCHI TB070, TB175, TB180FR, TB285, TB290
VOLVO EC70, ECR88
YANMAR SV100, Vio-70, Vio75-a, Vio-80, B7-5A
WACKER NEUSON

MINI 5

MAKE / WEIGHT CLASS MINI 5 (16,000 - 25,000 LBS.)
BOBCAT 7X125
CASE
CAT 310
DOOSAN
DITCH WITCH
GEHL GE1202
HITACHI ZX90, ZX100
HYUNDAI
IHI
JCB
JOHN DEERE
KOBELCO
KOMATSU
KUBOTA
LINK BELT
MUSTANG ME12002
NEW HOLLAND E90
SANY
TAKEUCHI
VOLVO
YANMAR
WACKER NEUSON
