WBC0512-2

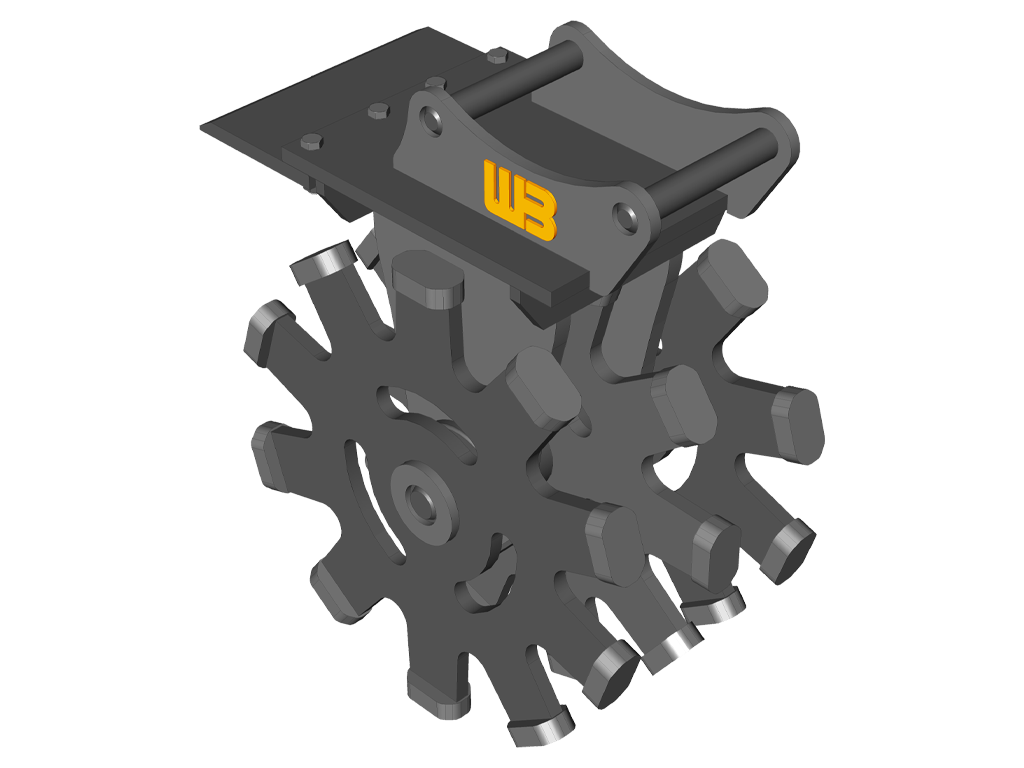

WERK-BRAU Wheel Compactors for 2,100 - 11,000 lbs. (mini 05, 76, 1, 15, and 2)
$6,807.00 - $7,933.00
2/24

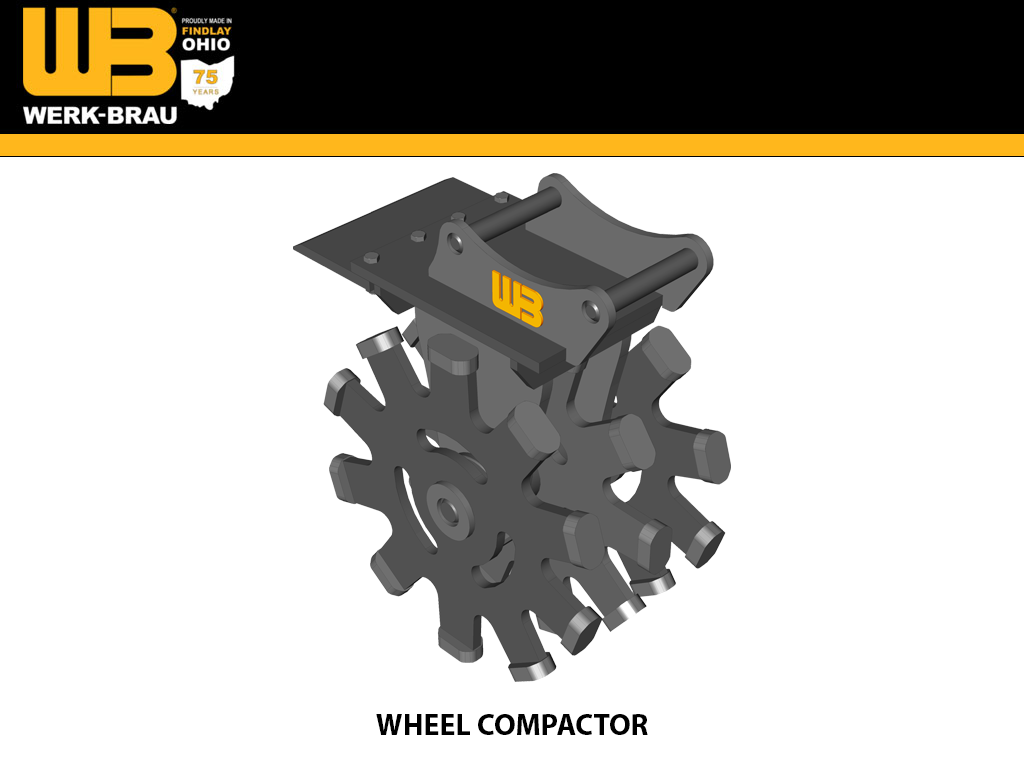

Wheel Compactor
Recommended Applications
Werk-Brau's Wheel Compactor for Excavators is specifically designed to compact fill material in a trench as it is being back-filled. Each wheel compactor is designed with staggered pads for even compacting. Werk-Brau's Wheel Compactor also eliminates unsafe compacting in trenches.
Quality Construction
High strength steel is used throughout the assembly. Replaceable heavy duty, durable sealed bearings ensure a long operating life in tough conditions. Each wheel is replaceable.
Standard Sizes
Various models are available, each having numerous widths for most excavators.
Additional Features
Hardened bushings are standard in the pivots. Cleaner bars are incorporated into the design to prevent buildup between the wheels. Easily adaptable to quick-coupling attachments.
Additional Options
Different widths are optional. Additional wheels can be added. Special designs and options are available, please request a quote from your local dealer.
| PART NUMBER | WIDTH | # OF WHEELS | WHEEL DIAMETER | WEIGHT |
| WBC0512-2 | 12" | 2 | 22" | 375 |
| WBC0518-2 | 18" | 3 | 22" | 550 |
| WBC0524-2 | 24" | 4 | 22" | 725 |
MINI 05
| MAKE / WEIGHT CLASS | MINI 05 (2,100 - 4,900 LBS.) |
| BOBCAT | 323 |
| CASE | CX17B |
| CAT | 301.5, 301.7CR, 301.8, 302CR |
| DOOSAN | S015 |
| DITCH WITCH | XT850 |
| GEHL | GE153 |
| HITACHI | EX17U |
| HYUNDAI | R16 |
| IHI | 15NX-2 |
| JCB | 8018 |
| JOHN DEERE | 17G |
| KOBELCO | 17SR |
| KOMATSU | PC18MR-3 |
| KUBOTA | KX018, U17 |
| LINK BELT | ME1503 |
| MUSTANG | E15, E18B |
| NEW HOLLAND | SY16 |
| SANY | TB016, TB216 |
| TAKEUCHI | EC15B |
| VOLVO | EC20B |
| YANMAR | Vio17, SV08-1, Vio20-3 |
| WACKER NEUSON | EZ17, 1404, ET20 |
MINI 76
| MAKE / WEIGHT CLASS | MINI 76 (2,100 - 5,000 LBS.) |
| BOBCAT | |
| CASE | CX27B |
| CAT | 302.5, 302.7 |
| DOOSAN | DX27 |
| DITCH WITCH | |
| GEHL | GE223 |
| HITACHI | ZX27U-2 |
| HYUNDAI | R22 |
| IHI | 20JX(NX), 25(NX), 28(NX), 30JX(NX) |
| JCB | 8025 |
| JOHN DEERE | 26G, 27G |
| KOBELCO | 27SR |
| KOMATSU | PC20MR-2 |
| KUBOTA | U25, U27 |
| LINK BELT | |
| MUSTANG | ME2203 |
| NEW HOLLAND | E27 |
| SANY | |
| TAKEUCHI | |
| VOLVO | EC25, EC30, ECR28, ECR38 |
| YANMAR | |
| WACKER NEUSON |
MINI 1
| MAKE / WEIGHT CLASS | MINI 1 (5,000 - 7,500 LBS.) |
| BOBCAT | 325, 328(D), 331(D/E), 334(D), 430, 329, E35, 425 |
| CASE | CX31B, CX36B, CX37C |
| CAT | 302.7DCR, 303ECR |
| DOOSAN | DX30, DX35 |
| DITCH WITCH | XT1600 |
| GEHL | GE283X, GE303, GE353, GE383Z |
| HITACHI | ZX35U-2 |
| HYUNDAI | R35, R36 |
| IHI | 35N-2 |
| JCB | 2CX, 8030, 8035, MIDI |
| JOHN DEERE | 35G |
| KOBELCO | 30SR, 35SR |
| KOMATSU | PC27MR-3, PC35MR-3 |
| KUBOTA | U35, U48, KX033, KX040, KX71 |
| LINK BELT | |
| MUSTANG | ME3003, 2803ZT, ME3503, ME3703, 3803ZT |
| NEW HOLLAND | E30, E35 |
| SANY | SY26, SY35 |
| TAKEUCHI | TB125, TB135, TB228, TB240, TB138FR, TB235 |
| VOLVO | EC35C, ECR48C |
| YANMAR | Vio27-5, Vio35-5, Vio45-5, Vio-50 |
| WACKER NEUSON | EZ28, EZ38, 3503 |
MINI 15
| MAKE / WEIGHT CLASS | MINI 15 (7,500 - 11,000 LBS.) |
| BOBCAT | 335, 337, 341, 435, E45, E50, E55, E60 |
| CASE | CX50B, CX55B, CX57C, CX60C |
| CAT | 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR |
| DOOSAN | DX60, DX63-3 |
| DITCH WITCH | |
| GEHL | GE503Z, GE603 |
| HITACHI | ZX50, AX60 |
| HYUNDAI | R55, R60 |
| IHI | 40JX, 45JX |
| JCB | 8040, 8045, 8052 |
| JOHN DEERE | 50G |
| KOBELCO | 50SR, 55SRX |
| KOMATSU | PC45MR-3, PC55MR-3, PC58UU-3 |
| KUBOTA | U55, KX057 |
| LINK BELT | |
| MUSTANG | 5003ZT, 6003 |
| NEW HOLLAND | E50, E55BX |
| SANY | SY50, SY60 |
| TAKEUCHI | TB145, TB153FR, TB250, TB260 |
| VOLVO | EC55B, ECR58 |
| YANMAR | Vio55-5 |
| WACKER NEUSON | ET65, EW65, EZ53, 6003 |
MINI 2
| MAKE / WEIGHT CLASS | MINI 2 (7,500 - 11,000 LBS.) |
| BOBCAT | |
| CASE | |
| CAT | |
| DOOSAN | |
| DITCH WITCH | |
| GEHL | |
| HITACHI | |
| HYUNDAI | |
| IHI | |
| JCB | |
| JOHN DEERE | 60G |
| KOBELCO | |
| KOMATSU | |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON |
