IMER CARRY 150 diesel (28 cu ft capacity)

Style


Power, Speed, and 180° Swivel Dump
The Carry 150 has an independent dual circuit hydrostatic transmission with a variable displacement axial piston pump and dual displacement axial piston hydraulic engine for each track. The standard Carry 150 model is powered by a Kubota diesel engine and offers a 180° trilateral hydraulic lift and swivel bucket to handle a multitude of loading/unloading options.

Model # 5150002 (28 cu ft capacity)

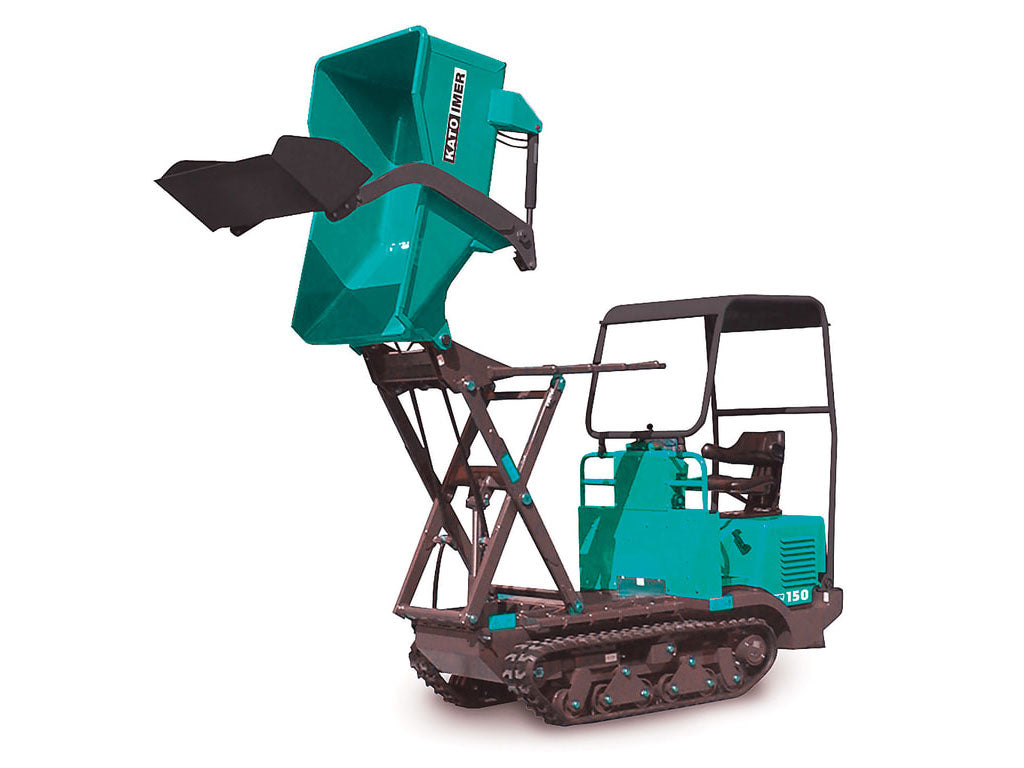

IMER / KATO Tracked Transporters are Not Your Average Concrete Buggy.  This versatile machine not only hauls concrete, the Carry 150 offers a 180° trilateral hydraulic lift and swivel bucket with a 28 cubic foot capacity to handle a multitude of loading/unloading options.

FEATURES

  • 28 cubic foot bucket capacity
  • 180° trilateral load/unloading with hydraulic lift and swivel
  • Spacious ground clearance and rubber tracks provide greater mobility and higher speeds
  • Foldable ROPS for operator protection
  • Adjustable operator seat in central rear position with access from both sides
  • Abundantly oversized Kubota 20 HP engine
  • Battery housing under engine bonnet

ACCESSORIES
150 “Hi-Tip” Tipping Bucket & Self-loading Shovel Attachment
Model #
5250315101


STANDARD EQUIPMENT
Model # 5150002
• Includes 28 cubic foot bucket
• 180° trilateral load/unloading with hydraulic lift
• Engine w/electric start, Kubota D902, 20 hp
